22kw 30HP 8bar IP55 Direct Drive Oil-Free Screw Air Compressor for Industrial

Short Description:

1. Mitsui technology, can replace Mitsui air end.
2. Highest ultra precision air end manufacturer in China, failure rate nearly 0.
3. 2-13bar, 20-40bar (for PET bottle blowing) available.
4. Comes with 3-stage filter, tap water is workable.
5, Easiest maintenance, 0 Emission.


Product Detail

More Details

Product parameters

TECHNICAL DATA

Model

Power

Pressure (bar)

Air Flow (m3/min)

Noise Level dBA

Outlet Size

Weight (kgs)

Lubricating Water(L)

Filter Element (B)-(Z)

Dimension LxWxH (mm)

OF-7.5F

7.5kw

10hp

8

1.0

60

RP 3/4

400

22

(25cm) 1

1000*720*1050

OF-11F

11kw

15hp

8

1.6

63



460



1156*845*1250

OF-15F

15kw

20hp

8

2.5

65

RP 1

620

28

(50cm) 1

1306*945*1260

OF-18F

18.5kw

25hp

8

3.0

67



750

33



1520*1060*1390

OF-22F

22kw

30hp

8

3.6

68



840

33



1520*1060*1390

OF-30F

30kw

40hp

8

5.0

69

RP 11/4

1050

66

(25cm) 5

1760*1160*1490

OF-37F

37kw

50hp

8

6.2

71



1100



1760*1160*1490

OF-45S

45kw

60hp

8

7.3

74

RP 11/2

1050

88



1760*1160*1490

OF-45F

45kw

60hp

8

7.3

74



1200



1760*1160*1490

OF-55S

55kw

75hp

8

10

74

RP 2

1250

110

(50cm) 5

1900*1250*1361

OF-55F

55kw

75hp

8

10

74



2200



(50cm) 7

2350*1250*1880

OF-75S

75kw

100hp

8

13

75



1650



(50cm) 5

1900*1250*1361

OF-75F

75kw

100hp

8

13

75



2500



(50cm) 7

2550*1620*1880

OF-90S

90kw

125hp

8

15

76



2050



(50cm) 5

1900*1250*1361

OF-90F

90kw

125hp

8

15

76



2650



(50cm) 7

2550*1620*1880

OF-110S

110kw

150hp

8

20

78

DN 65

2550

130

(50cm) 12

2200*1600*1735

OF-110F

110kw

150hp

8

20

78



3500

130



3000*1700*2250

OF-132S

132kw

175hp

8

23

80



2700

130



2200*1600*2250

OF-160S

160kw

220hp

8

26

82



2900

165



2200*1600*2250

OF-185S

185kw

250hp

8

30

83

DN 100

3300

180

(50cm) 22

2860*1800*1945

OF-200S

200kw

270hp

8

33

83



3500



2860*1800*1945

OF-220S

220kw

300hp

8

36

85



4500



2860*2000*2300

OF-250S

250kw

340hp

8

40

85



4700



2860*2000*2300

OF-315S

315kw

480hp

8

50

90



5000



2860*2000*2300

F-- air cooling method     S-- water cooling method

画册1.15-7

Product Introduction

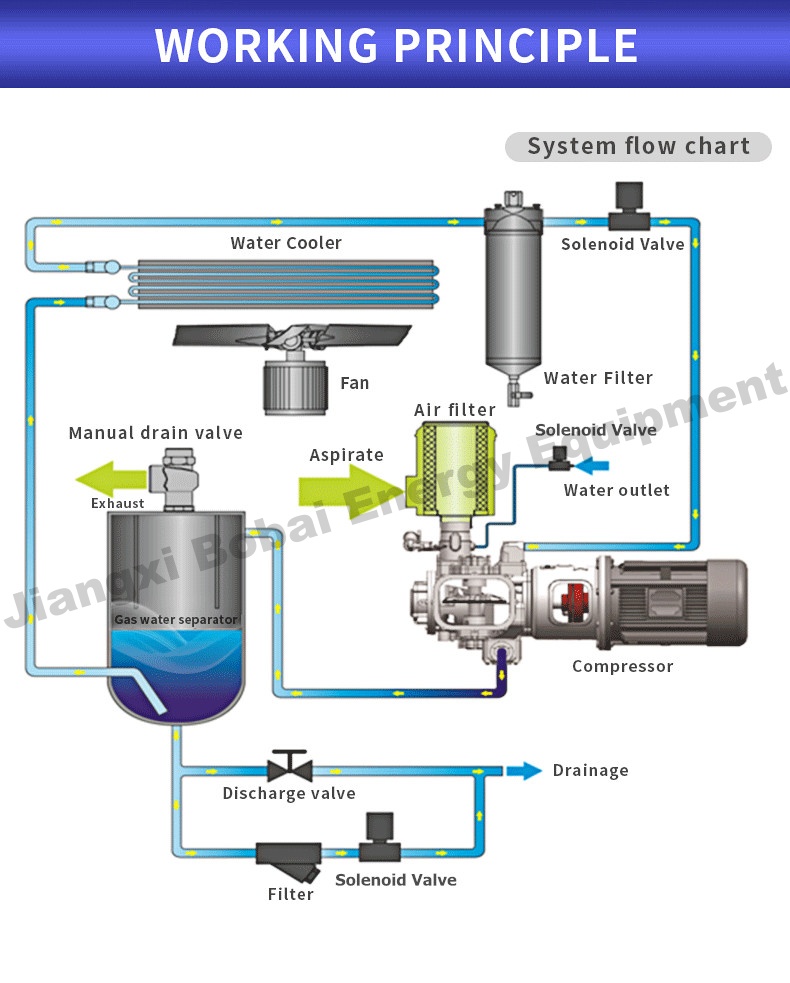

123_02
123_03

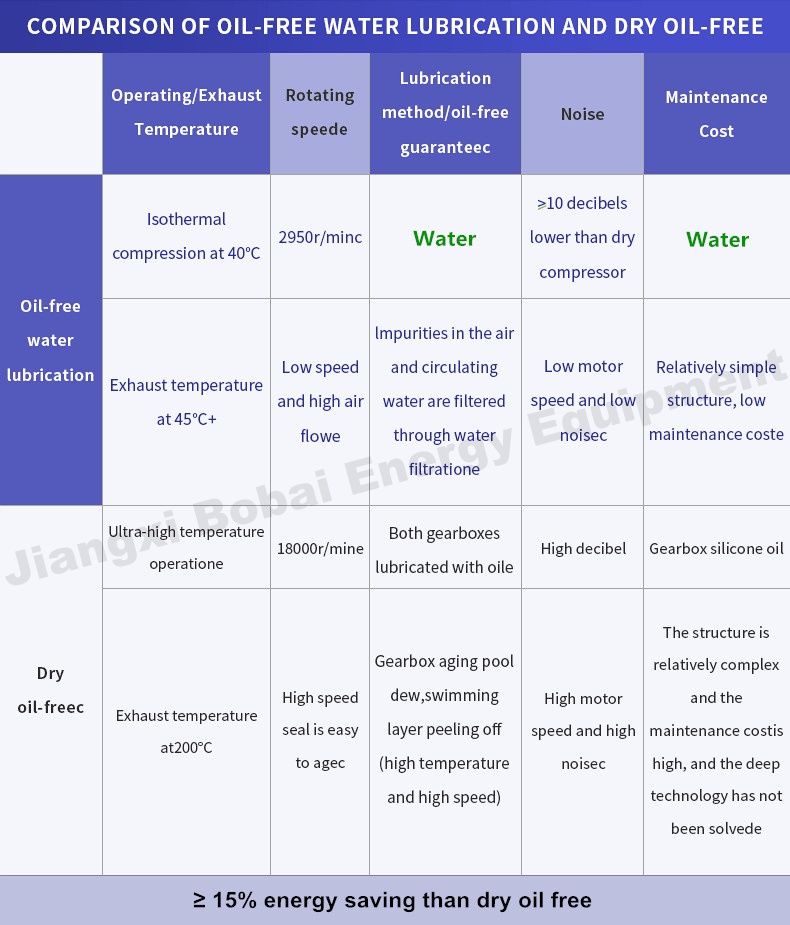

123_05

The Only Consumables

574 (1)

the function of the air filter is to block the some granular impurities in inhaled air, according to the environment condition is different and replaced every 500-2000 hours

574 (2)

the function of the water filter element is to block the particulate impurities in the circulating water and protect the air end from wear and tear. It should be replaced every 2000-4000 hours depending on the environmental conditions.

Why Choose BOBAIR Air Compressor ?

23 (1)

Air End

Original MITSUI’s technology, which can replace Mitsui’ s air end one-by-one.

23 (2)

Motor

Best class motor brand, IP55 protection level,F-level insulation

23 (3)

Radiator

Pure copper material, stronger heat dissipation than aluminum sheet, 5-10 years longer service life.

23 (2)

Exchanger

Made of 304 stainless steel.

23 (1)

Water Purifier

Upgraded design, 304 stainless steel material. So tap water is workable.
Solenoid Valve Original imported SMC brand


  • Previous:
  • Next:

  • 123_07

    123_08123_09

    123_10

    123_11

    123_12

    The brand “BOBAIR, specializes in the R&D, manufacturing, sales and service of compressors, oil-free compressors and air end, special gas compressors, various air compressors and post-processing equipment, providing customers with High-quality, environmentally friendly and efficient air system solutions and fast and stable technical services.

    4_副本



    Why Choose BOBAIR Oil-free Screw Air Compressor

    1. Mitsui technology, can replace Mitsui air end 1:1.
    2. Highest ultra precision air end manufacturer in China, failure rate nearly 0.
    3. Comes with 3-stage purifier, tap water(daily used water) is workable.
    4. Easiest maintenance, 0 Emission.
    5. simple structure, easy to use.
    6. with 485 remote switch.

    Jiangxi Bobai has launched a completely new range of high efficiency, oil-free two-stage rotary screw compressors to further enhance its successful. These high output oil-free machines now cover a wide flow range from 6.0 to 40.0m3/min, the pressure range from 20bar to 40bar.

    High-pressure compressed air is used for blowing bottles.
    The pressure depends on the container’s design, wall thickness, blow speed, and so on. The bottles with thick walls, sharp edges, and special shapes need higher pressure. Generally, the stretch blow molding requires about 10~25bar for pre-blowing and about 40bar for the bottle-blowing process. The trend for PET bottle-blowing machines is to reduce the blow pressure as much as possible for energy saving.
    The bottles should be cleaned with compressed air before filling the water, beverage, cooking oil and so on.
    If the air is contaminated, it will influence the flavor and odor, causing health problems.

    For screw type, the air is compressed to 7~8bar at the first screw compression stage, there is no need to cool and the air goes into the second stage screw air end, finally achieving 30~40bar air discharge directly without cooling. Rotation speed 3000r/min, zero loads. About 50℃, no heat waste, Ideal isothermal compression.
